The Resus Tracks 05: Kenny (@heart_lung) Tackles Shock Perfusion! #FOAMed, #FOAMcc, #FOAMus

So finally got around to corralling Physiology Jedi Master Jon-Emile Kenny for a chat, which is always a tremendous learning opportunity. And this time was no different. Jon breaks down some of the mysteries around arteriolo-capillary coupling and shock flow, and brings up some really interesting potential uses of the critical collapse pressure of small arterioles, and hints at how we may be able to use some POCUS techniques to clinically assess tissue perfusion.

Here you go:

Please leave comments and questions!

The article we refer in the beginning to is here:

MAP in sepsis review

And the article on critical closing pressure in the neurocirculation that Jon refers to is here:

CrCP Brain

cheers!



Philippe

The Resus Tracks 04: Shock Circulation & Renal Perfusion with Korbin Haycock. #FOAMed, #FOAMer, #FOAMus



So I got to have a chat with ER doc extraordinaire Korbin Haycock today, reasserting my belief that tissue perfusion is not proportional to blood pressure.  I am again including the article discussed, and here is the graph in question:

Here is our talk:

And the paper – which is definitely worth a read, as it clearly supports individualizing therapy!

MAP in sepsis review



cheers and please jump into the discussion!



Philippe

The Resus Tracks 03 – Shock Circulation with @EMnerd! #FOAMed, #FOAMcc, #FOAMer

Here we go!



Discussing with Rory is always awesome, because he manages to distill things to the most important stuff. In this one he basically says sure Phil, it’s fun to think up all kinds of semi-theoretico-imaginary hemodynamic stuff, but you gotta make sure you control the source!

Thanks!



Love to hear comments and criticisms!



Philippe



Here is the open access paper I was talking about, graph on page 2.

MAP in sepsis review



POCUS & Venous Congestion – A Clinical Case Discussion with Rory Spiegel (@EMnerd_), #FOAMed, #FOAMus, #FOAMcc

Hi, so as a follow up to our earlier discussion, which can be found here, Rory and I discuss a recent case he had, which I think exemplifies well many of the clinical conundrums that are seen in fluid resuscitation, one being the general resistance of many to diurese patients who are still in shock on vasopressors, instead preferring to (hopefully) wait until shock resolution to de-resuscitate. But sometimes, it is exactly what they need, as some of this congestion may be, in fact, a cause of shock…

Here you go:

Love to hear opinions, so feel free to reach out.



For those who may be interested at learning some of these POCUS skills, check out H&R2018 (#Hres2018)!



cheers!



Philippe

H&R2018: Final Program! Only a few spots left!

Do you take care of sick patients?  If so, you’ll be liking these two days.

Jon-Emile Kenny, Rory Spiegel, Josh Farkas and Andre Denault in the same, small auditorium. It’s a treat.

So here is the schedule for both days, including the workshops, which at this point are almost filled. We’re quite excited as it has really come along well, and all the speakers are amped to teach and learn, which is the point of this whole thing.



Due to fire code, space is limited so register now! And honestly, the workshops are almost full, but if there is sufficient demand, we might add one or two, so don’t be shy. Someone even asked for a Neuro-POCUS workshop. A couple more inquiries and we’ll do it!

Download the brochure and registration form here: H&R2018 – Brochure-Participants



Thanks and see you in Montreal in April!



The Scientific & Organizing Committee

The Hospitalist & The Resuscitationist. Montreal, April 18th & 19th, 2018. #Hres2018

NOTE: THIS WAS THE H&R2018 PAGE, SO IF YOU ARE LOOKING FOR H&R2019, CLICK HERE!

So for this winter, we’ve put together a little gem of a conference which will be a mix of hospitalist and critical care medicine, both with a dash of POCUS for good measure. Our focus here will be short, to the point, highly relevant and highly physiological talks on key topics, in short, 15 minute talks.

What are we going to talk about?

Day 1: The Hospitalist



Day 2: The Resuscitationist





You can figure there will also be late-breakers, “ask the crowd” talks and more.

Workshops? Sure:

Yup. You can ask for a workshop. Enough similar requests will probably make it happen. A few have already asked for Neuro-POCUS, so that is a likely addition.



So, who will be talking?  The lineup already includes Andre Denault, Josh Farkas (@Pulmcrit), Jon-Emile Kenny (@heart_lung), Rory Spiegel (@EMnerd), Hussein Fadlallah, Peter Barriga, Daniel Kaud, Davide Maggio, Michael Palumbo, William Beaubien-Souligny, and a few more to confirm. And who knows who might do an impromptu drop-in…



The short answer is yes. Of course, it does depend on what you do. If you are a hospitalist, involved in critical care or acute care of any kinds, you will find something here for you. Totally awesome for IM residents/FM residents planning on doing some hospital medicine or ICU coverage. Who will get the most bang for his or her buck here? Real docs training or working in the trenches. This isn’t a cutting edge research conference, but a cutting edge clinical application conference.



Oh yes, and the CME, of course:



This will be a small, fun conference. Space is purposely limited, for an intimate feel and to encourage discussion between peers. No need for these exclusive “meet-the-professor lunch” or anything like that: that’s what the whole event is like!



Registration is open! Print, fill, write a cheque and send the form below:

RegistrationV2

If you’re crazy busy, or have any questions, feel free to email hospresusconference@gmail.com or tweet (@ThinkingCC) to reserve a spot!

Download the brochure here:

H&R2018 Brochure – Participants



cheers!



The H&R 2018 Scientific & Organizing Committee:

Dr. Philippe St-Arnaud – ER and Critical Care doc, POCUS instructor and constantly pushing the clinical envelope.

Dr. Carola Zambrana – our Hospitalist on the panel, constantly seeking excellence in care and working on bringing POCUS to the wards.

Dr. Mario Rizzi – our friendly neighborhood respirologist and educator.

Dr. Philippe Rola – Critical Care doc, long time POCUS aficionado and instructor, working at bringing POCUS into the everyday physical exam.



Jon-Emile (@heart_lung) chimes in on the whole portal vein POCUS! #FOAMcc, #FOAMed

When it comes to physiology, there`s no doubt that Jon is the man, so I was really curious about his take on all this, which, no surprise, is definitely worth sharing, just in case everyone doesn`t go read the comments.



Jon:

Wow; there is a lot to unpack here.

My first comment is that intra-renal venous flow [*not renal vein flow], hepatic vein flow, portal vein flow, etc, etc, etc [as well as IVC size and respiratory variation] are all ultrasonographic transductions of the central venous pressure …so I’ll give my boxed disclaimer that volume status and volume responsiveness cannot definitively and reliably obtained from this marker because the CVP is too complicated to make these physiological leaps.

Indeed. It is important to realize that, as Jon states below, that the angle for looking at the PV in this case is to assess congestion, rather than responsiveness or the ever-so-nebulous ‘status.’

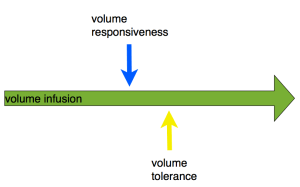

Wait for it … volume tolerance and the CVP, is a bit more nuanced, i think.  with a high CVP, you really have to ask yourself – **why** is the CVP elevated and go from there.  if the CVP is elevated because of tamponade, its very different management from a high CVP from a massive PE or air-trapping versus a high CVP from volume overload.

Absolutely. Diuresing a pre- or full-fledged tamponade, PE or air-trapping could have disastrous consequences, i.e. PEA arrest!

There seems to be some confusion about *the renal vein* versus *intra-renal vein*.  the lida trial is clear that it is intra-renal vein flow.  i am not terribly familiar with *the renal vein flow, however, my hunch is that renal vein flow should always be biphasic [just as the jugular venous flow, SVC flow, IVC flow and hepatic vein flow are always biphasic] – that is a normal pattern close to the right atrium.  normally the systolic inflow velocity is greater than the diastolic inflow velocity and there is fairly good data correlating reversal of systolic to diastolic venous flow ration to right atrial pressure [in the IVC and SVC].

Definitely the intra-renal vein should be the target here – not always easy in some patients, because the renal vein itself, especially the right (no crossover) really has an IVC pattern and won`t necessarily reflect the effect of intra-renal hypertension.

The pulsatility that evolves in the intra-renal vein as the CVP rises is beyond me, but the authors postulate that it has to do with the compliance of the vein at higher CVP and intra-renal interstitial pressure which makes some sense.  But it is important to note that the compliance curves of an intra-renal vein and *the* renal vein are probably quite different.

Secondly, the pulsatility of the PV is a neat idea because of its relative ease of assessment.  However, the pulsatility, presumably, is due to the PV encroaching the limits of its compliance curve – the PV, like the CVP – has an inflow and outflow pressure.  It is highly likely that a pulsatile PV in a post-operative cardiac patient relates to an angry RV – but is this always true?  What about the cirrhotic?  What about differential partitioning of fluid into the splanchnic bed versus the lower body?  What about differential expression of adreno-receptors between splanchnic arteries [beta and alpha] and splanchnic veins [mostly alpha].  My point is that there could be *other* inflow and outflow differentials that are affecting PV volume, compliance and therefore pulsatility that are not yet recognized.  A cirrhotic on bomb dose phenylephrine/vasopressin may have their splanchnic venous volume recruited with blood expelled towards the liver, an engorged PV that is pulsatile – but is that RV failure?  Is that a patient who needs to be decongested?  I don’t know.

Thirdly, there are complex cardiac contributions to venous flow phase and vein pulsatility such as arrythmia – atrial compliance, etc.  As the comment above notes – how might afib contribute to SVC or IVC venous inflow?  It’s hard to know, but my hunch would be that afib itself would tend to reverse the normal S wave: D wave supremacy … that is, decrease the normal systolic inflow velocity relative to the diastolic inflow velocity.  if the atrium is not emptied fully then its pressure with rise.  if atrial pressure rises, when the atrium is pulled downward during ventricular systole, the S wave will be diminished.  additionally, the more chronically dilated and poorly compliant the right atrium, the greater its pressure will be with the loss of atrial kick.

Fantastic points. Again, looking at POCUS metrics CANNOT BE DONE IN ISOLATION, from the rest of the POCUS and clinical data.

Lastly, the venous inflow pattern analysis approach to CVP estimation – i think – is better than IVC size and collapse because of how IVC size and collapse can also be affected by IAP, ITP/PEEP, etc.  Because ITP affects systolic and diastolic inflow patterns similarly, that confound should be lessened.  Nevertheless, as Dr. Denault mentions in the cases above – you have to treat the patient!  This means integrating what the data is telling you in the patient in front of you.  If in a certain clinical context the test results do not make sense, it’s probably a false positive or false negative test.

I dug up this gem from 30+ years ago. Excellent paper [https://www.ncbi.nlm.nih.gov/pubmed/3907280 – “Ultrasonic assessment of abdominal venous return. I. Effect of cardiac action and respiration on mean velocity pattern, cross-sectional area and flow in the inferior vena cava and portal vein”].

Ok that’s on my short reading list for the next 48h!

They show the venous inflow waveform for the IVC [presumably very similar to *the renal vein]; Afib *does* cause the S wave to become attenuated – so it would change the normal biphasic form to more of a monophasic form. In theory, giving a calcium channel blocker and slowing the patient down should improve this somewhat. They even have a brief discussion on portal vein pulsatility.

This venous inflow stuff is very interesting and potentially very applicable. @iceman tweeted out wave velocity patterns in the MCA during high ICP – indeed – an increase in ICP renders the flow more pulsatile and then there is loss of diastolic flow. Probably similar physiology for an intra-renal vein as intra-renal capsular pressure rises. A good sign that the kidney is under pressure!

Thank you Jon for some really excellent physiological points and the reminder that, in POCUS just as in clinical medicine, we cannot rely on one assessment, and that measure must be considered in the context of the factors affecting it. Otherwise, we are not truly tailoring our therapy to the patient, but only pretending to.

Don’t miss Jon and the POCUS workshops at  next april!
